YAML templates

What are YAML templates?

The YAML templates, also known as remote YAML definitions, are templates with parameters that can be inherited by pipelines. This feature is useful to quickly set up new projects and update configuration across multiple pipelines at once.

Requirements and parameters

One file equals one template. Each template needs to be created in a separate file
Parameters are defined just like environment variables, but instead of $ you provide !, e.g. !param1. The default value for the remote pipeline parameters is !{param1:defaultValue}
In the inheriting pipeline, you define the parameter that will be swapped for a string
You can parameterize basically everything, from individual properties to whole actions. In the example below, you can see two parameters: !optionalaction and !awsintegration

Example

yaml
 - pipeline: "template"
  on: "EVENT"
  events:
  - type: "PUSH"
    refs:
    - "refs/heads/development"
  priority: "NORMAL"
  fail_on_prepare_env_warning: true
  actions:
  - action: "pwd"
    type: "BUILD"
    working_directory: "/buddy/git-repo"
    docker_image_name: "library/ubuntu"
    docker_image_tag: "18.04"
    execute_commands:
    - "pwd"
    volume_mappings:
    - "/:/buddy/git-repo"
    cache_base_image: true
    shell: "BASH"
!optionalaction
  - action: "cp bucket"
    type: "AWS_CLI_2"
    region: "us-east-1"
    execute_commands:
    - "aws s3 cp test.txt s3://mybucket/test2.txt"
    shell: "SH"
    integration: "!awsintegration"

Inheriting pipeline configuration

The next step is to define the pipelines that will inherit from the template. In these pipelines, you provide:

Pipeline name
Definition_source: “REMOTE”
Project, branch, and path to the template
The list of parameters to swap in the child pipeline

Example

yaml
- pipeline: "child1"
  definition_source: "REMOTE"
  remote_path: "/t1.yml"
  remote_branch: "master"
  remote_project_name: "templates"
  remote_parameters:
  - key: "optionalaction"
    value: |-
     - action: "ls"
       type: "BUILD"
       working_directory: "/buddy/git-repo"
       docker_image_name: "library/ubuntu"
       docker_image_tag: "18.04"
       execute_commands:
       - "ls"
       volume_mappings:
       - "/:/buddy/git-repo"
       cache_base_image: true
       shell: "BASH"
  - key: "awsintegration"
    value: "vVP4XgELYqaQ5Vg5anjk2m9Oz7"
- pipeline: "child2"
  definition_source: "REMOTE"
  remote_path: "/t1.yml"
  remote_branch: "master"
  remote_project_name: "templates"
  remote_parameters:
  - key: "optionalaction"
    value: ""
  - key: "awsintegration"
    value: "vVP4XgELYqaQ5Vg5anjk2m9Oz7"

GUI configuration

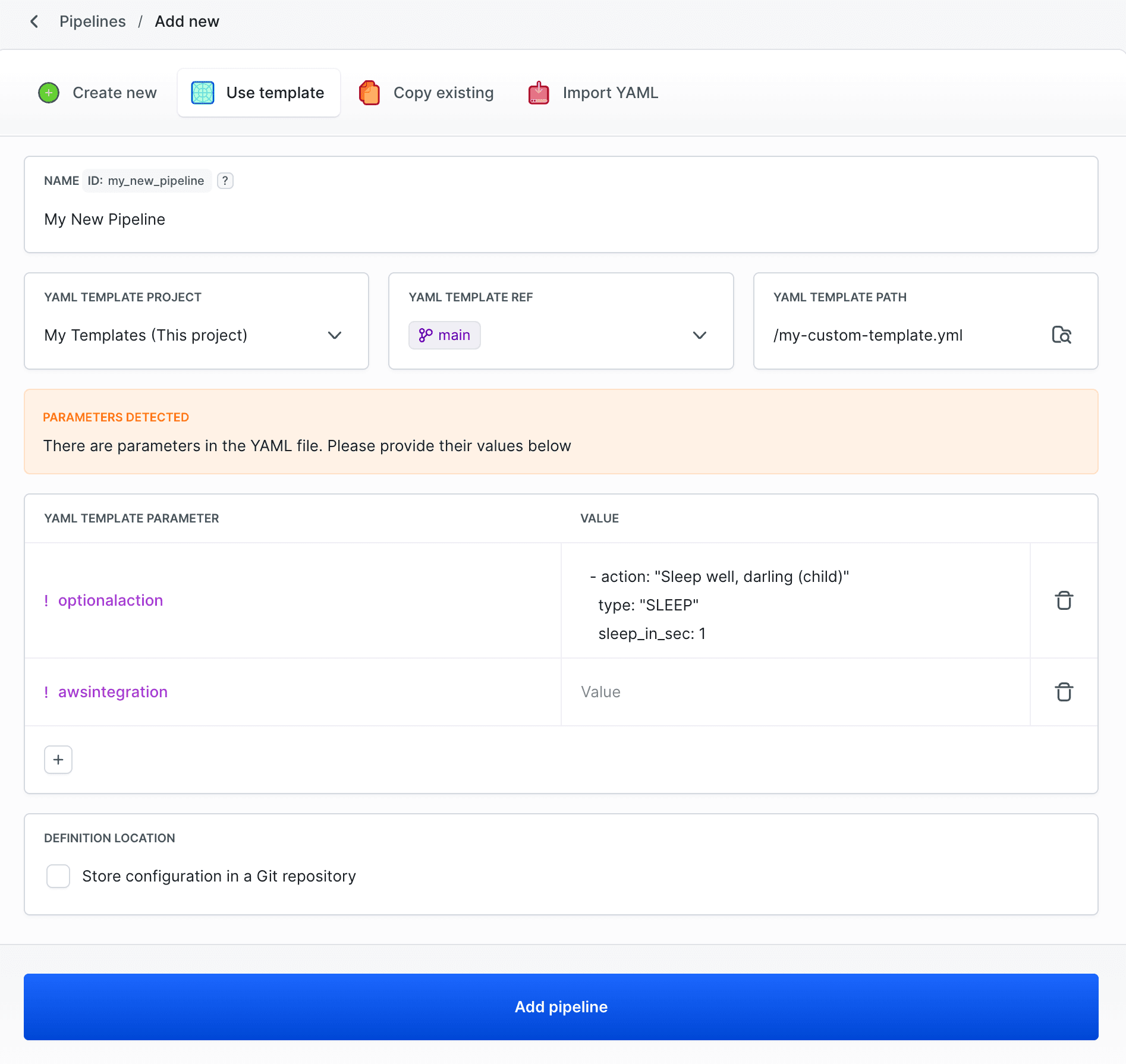

The parameters can also be defined from the GUI. To do that, select Use template tab, specify the project, branch, and path to the template in the filesystem, and define the parameters

Image loading...

Last modified on Sep 23, 2024
