Pipeline configuration

Pipelines are series of preconfigured actions that can be used to automate basically every aspect of software development. Here you will learn how to configure a pipeline which builds, signs, and deploys an iOS application on a push to the selected Git branch.

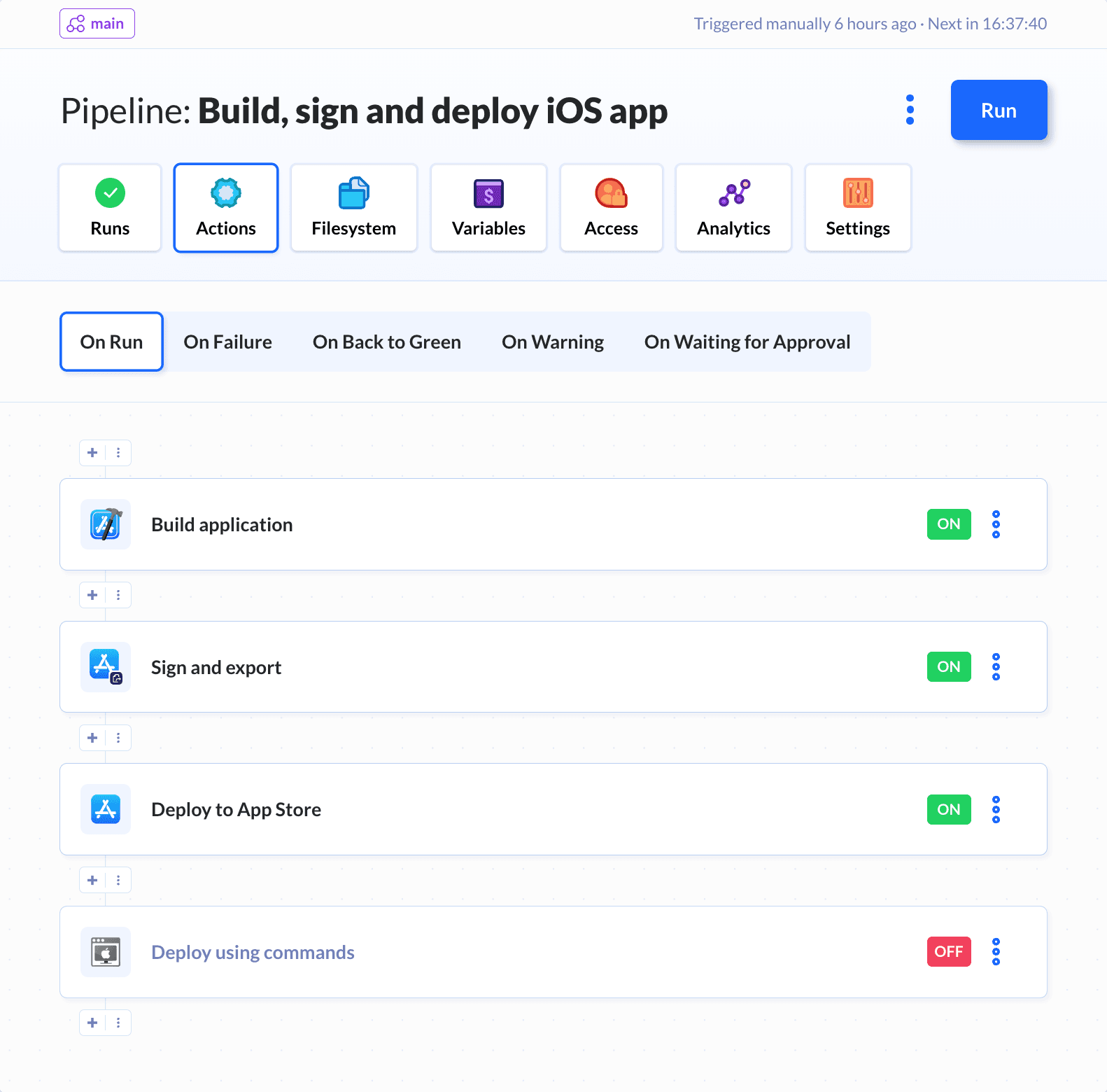

Example iOS delivery pipeline

Synchronizing repository

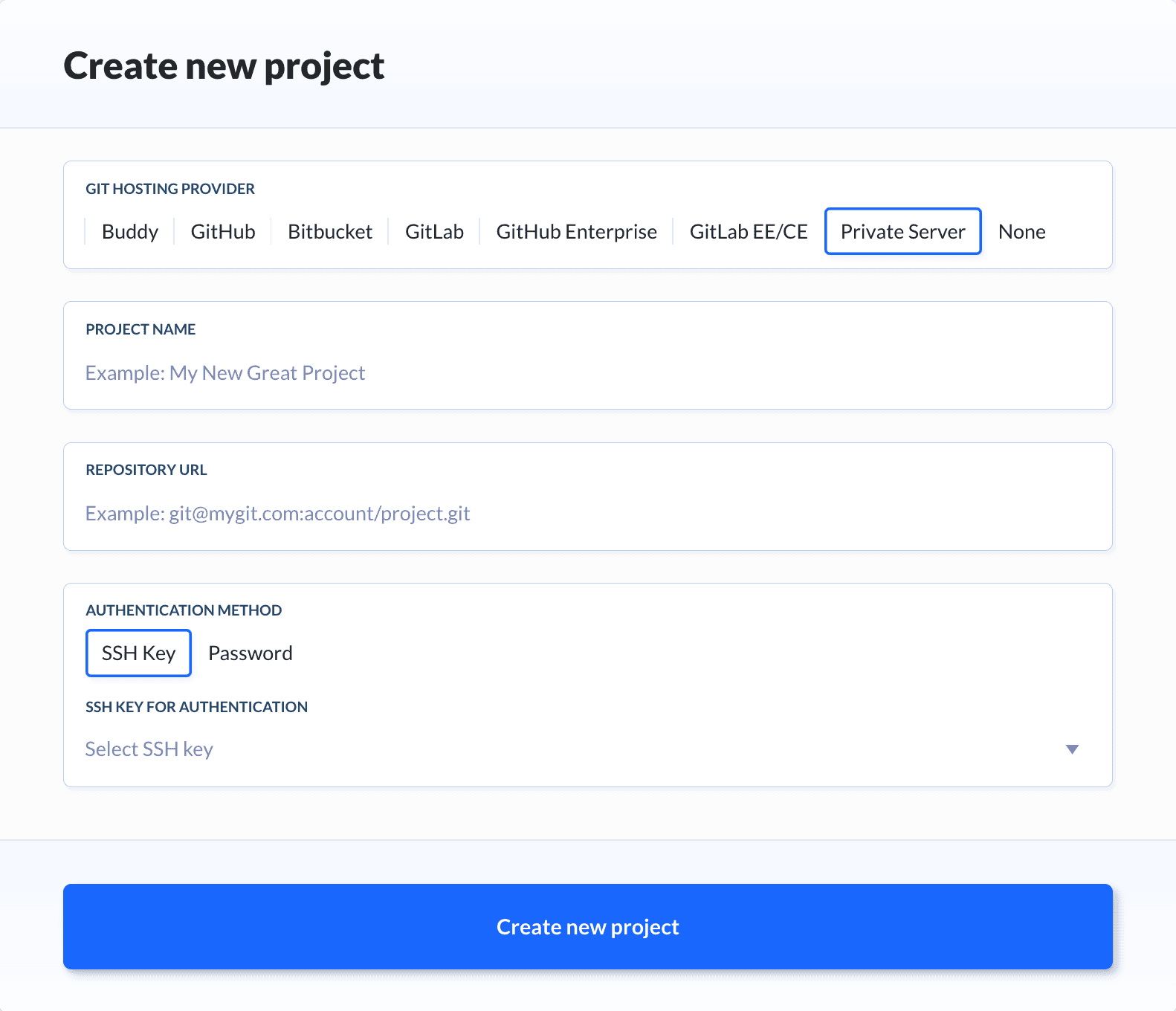

Click New project, switch to your Git hosting provider, and select the repository with your project:

Project configuration

Pipeline configuration

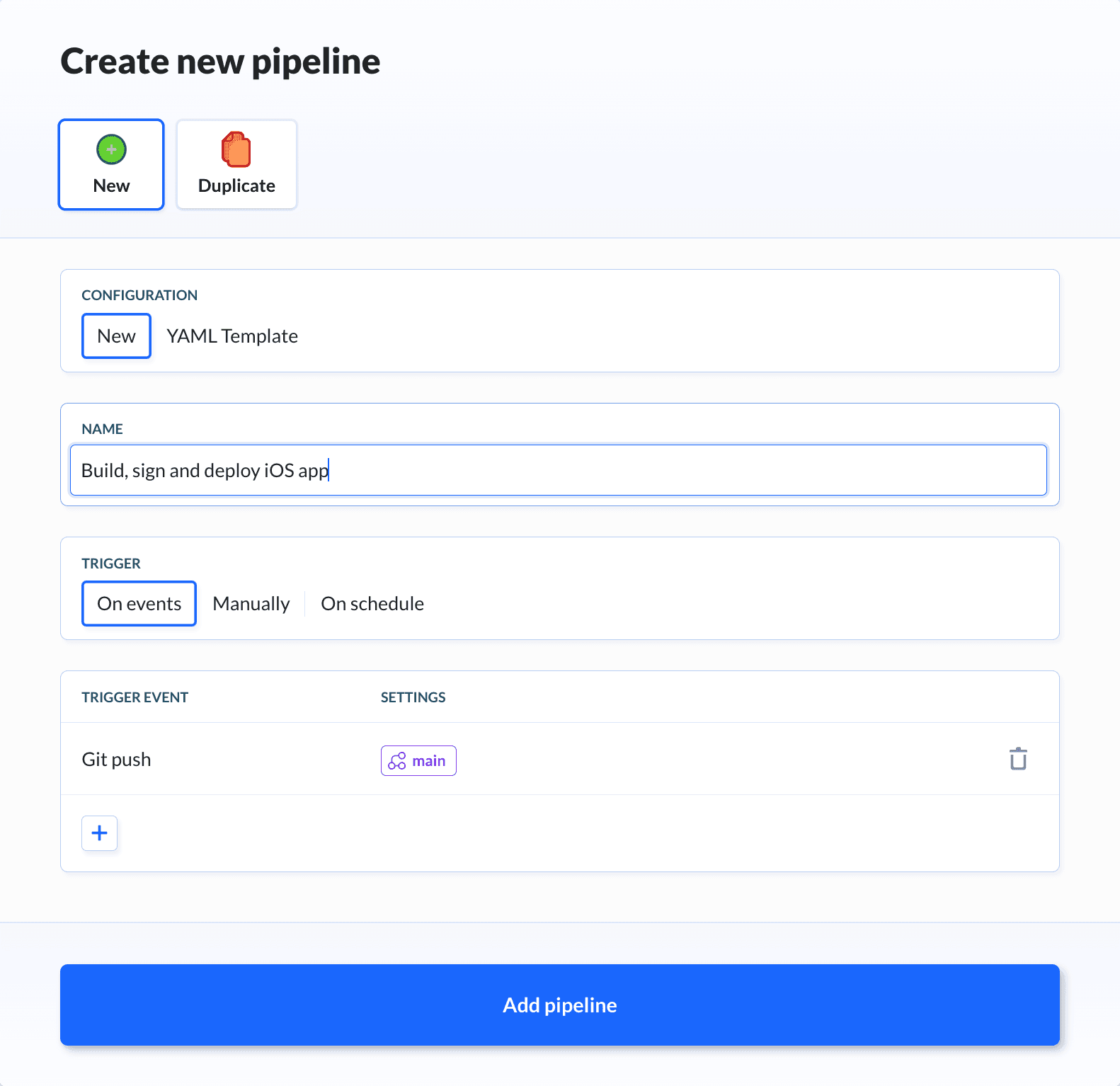

Click New pipeline and configure the pipeline details. For development pipelines, we recommend setting the trigger mode to On events > Git push. This way, Buddy will run the pipeline on every push to the selected branch:

Pipeline configuration

Actions

Build

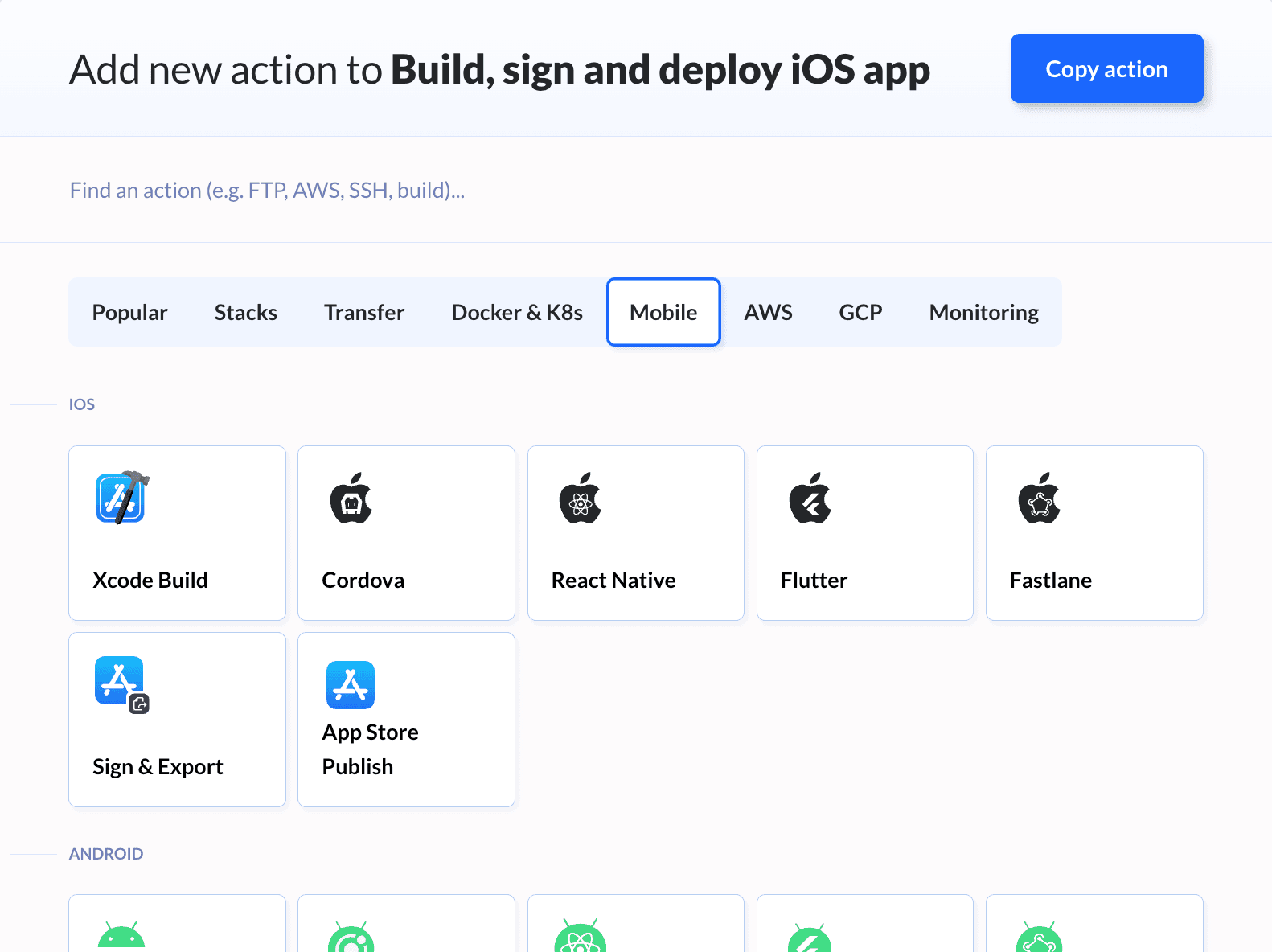

On the action list, switch to the Mobile tab and select the framework in which you develop your application:

iOS actions

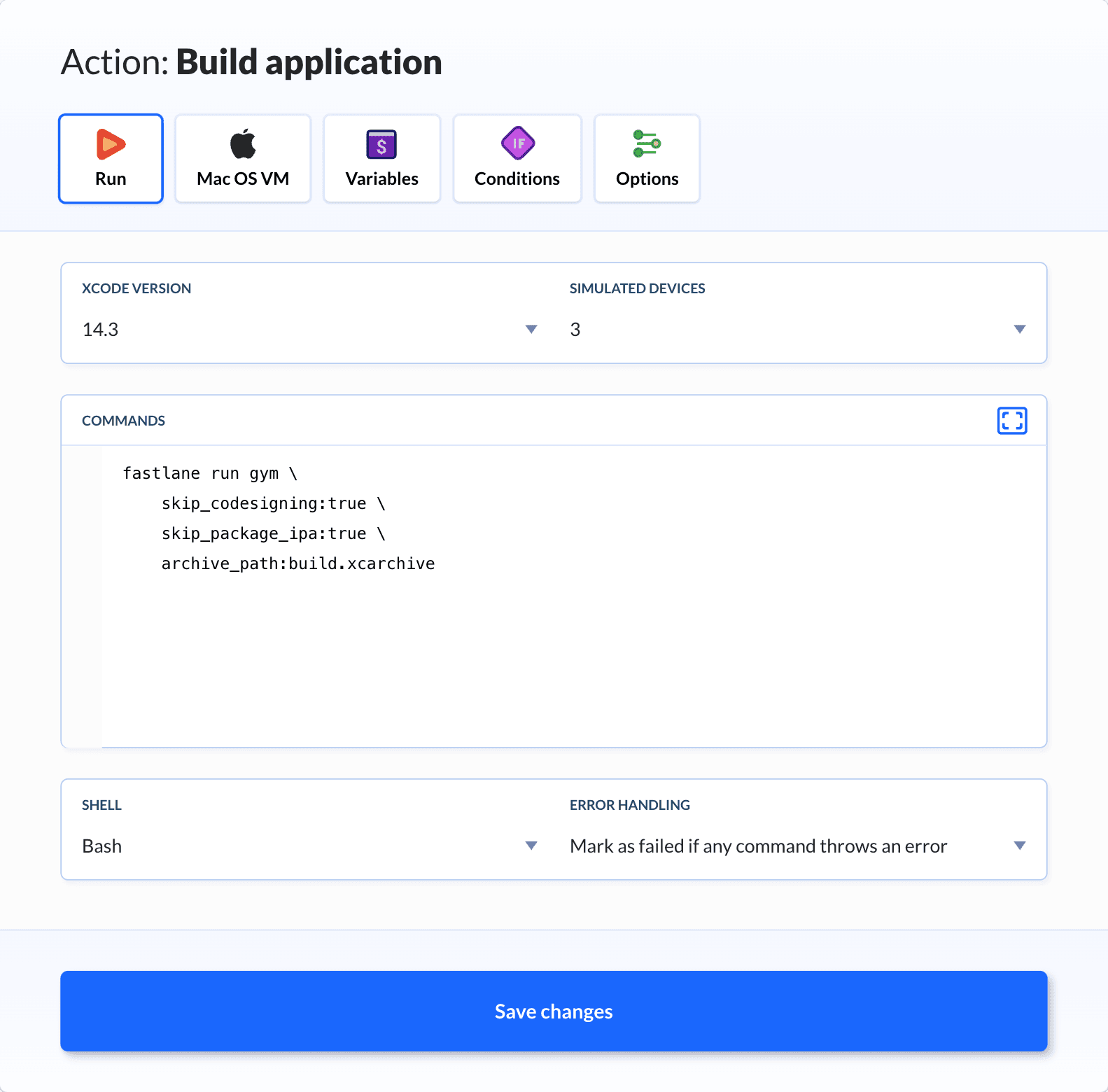

Here we can see an Xcode action which uses Fastlane to build the application:

Xcode Build action configuration

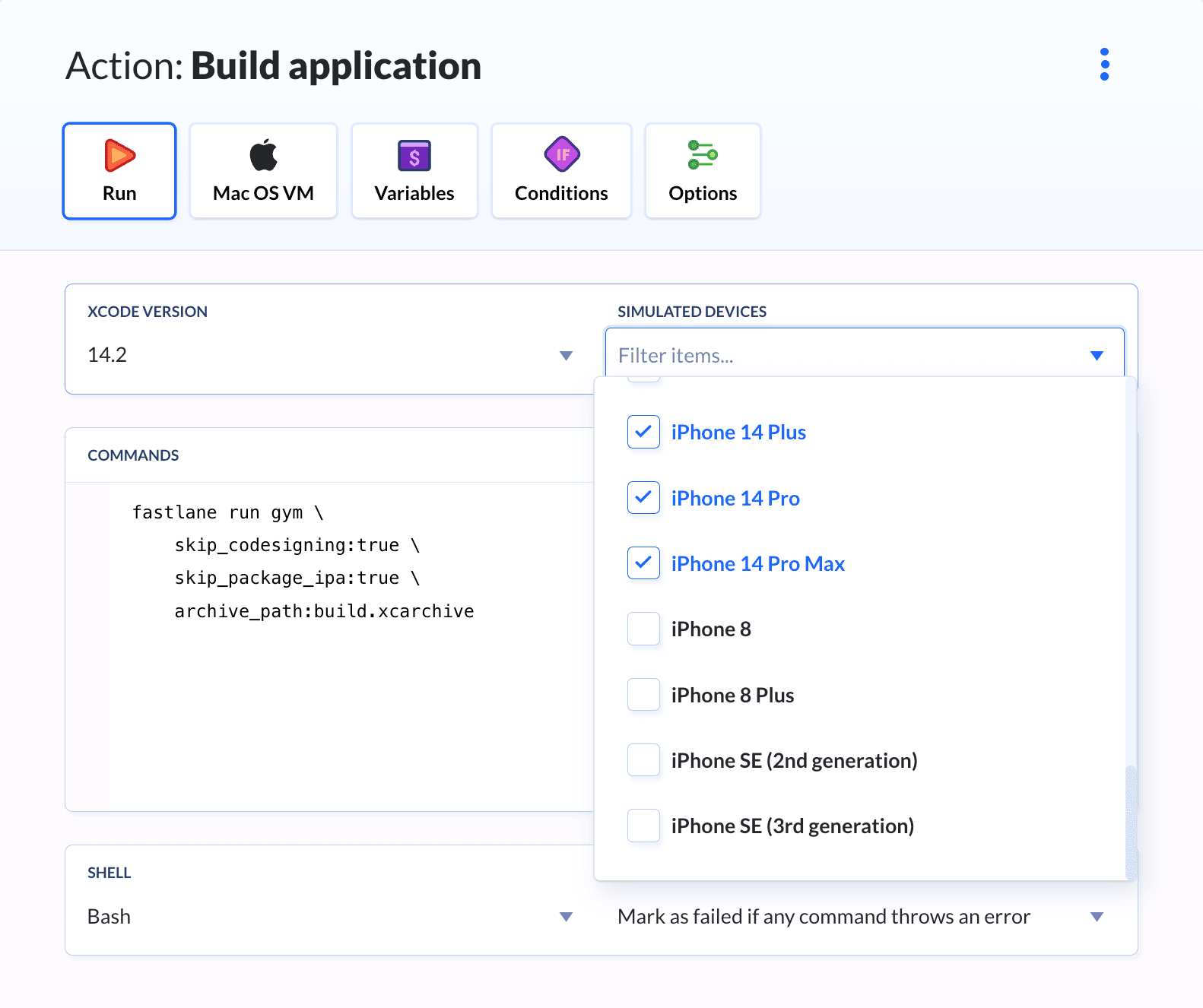

You can use the dropdown menus to change the version of your framework and select the devices to simulate:

Additional build options

Sign package

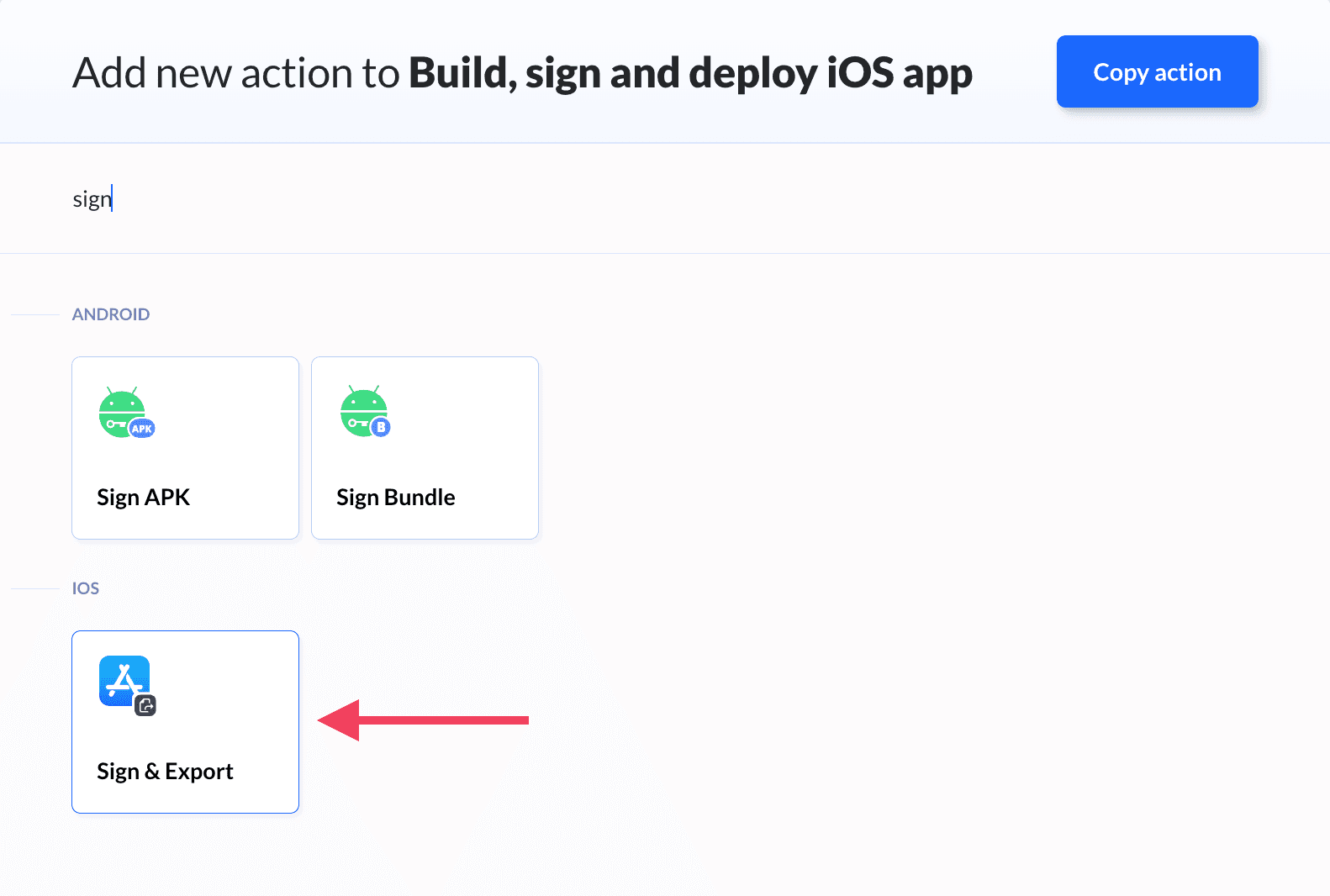

Before deploying the package, you first need to sign it. Click the + on the pipeline view and look up the Sign & Export action:

Sign & Export on action list

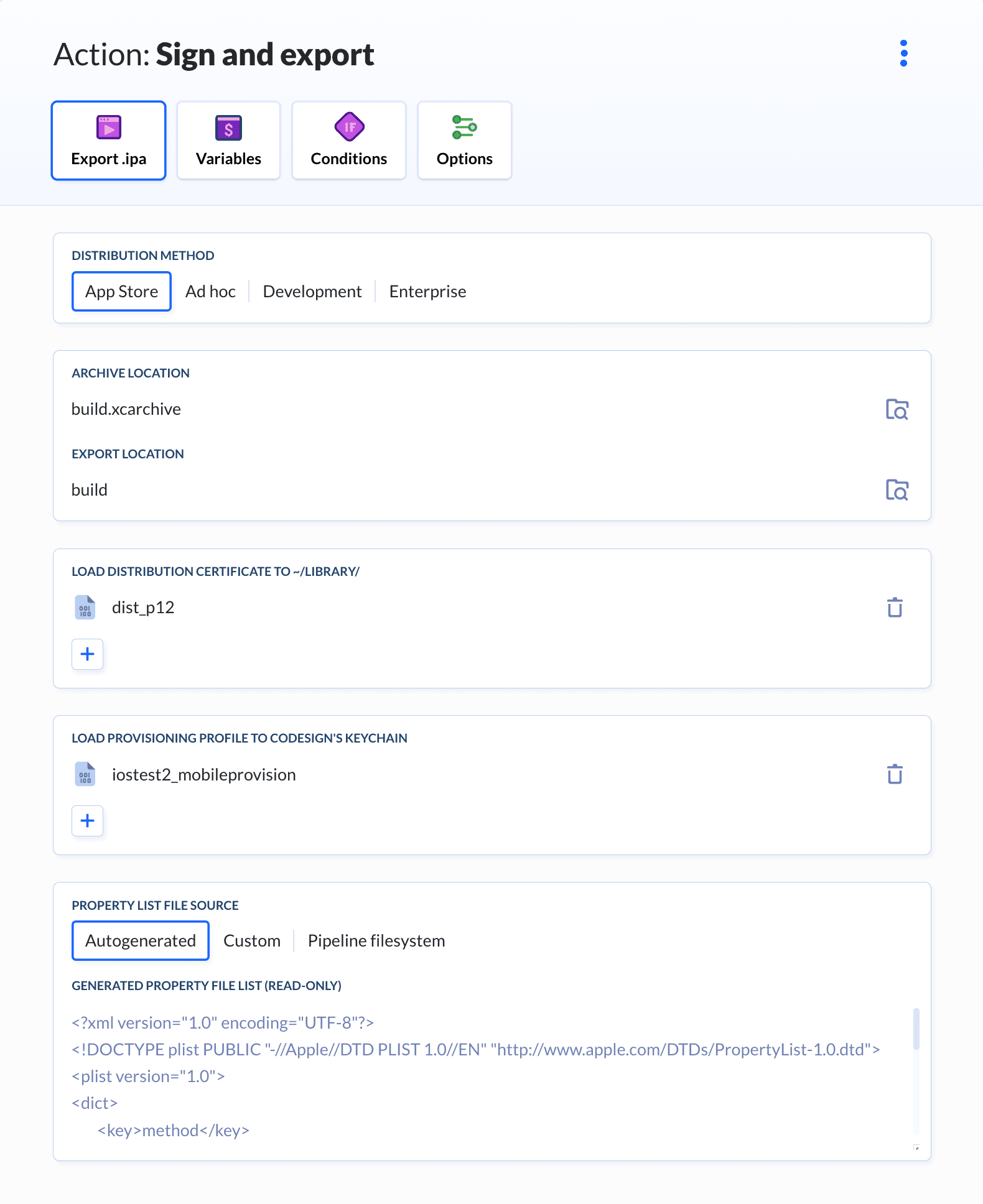

Here you define:

• The path to the archive created by the build action
• The export path to which the signed .ipa file will be saved
• The distribution certificate
• The provisioning profile

Sign & Export action configuration

Deploy to App Store Connect

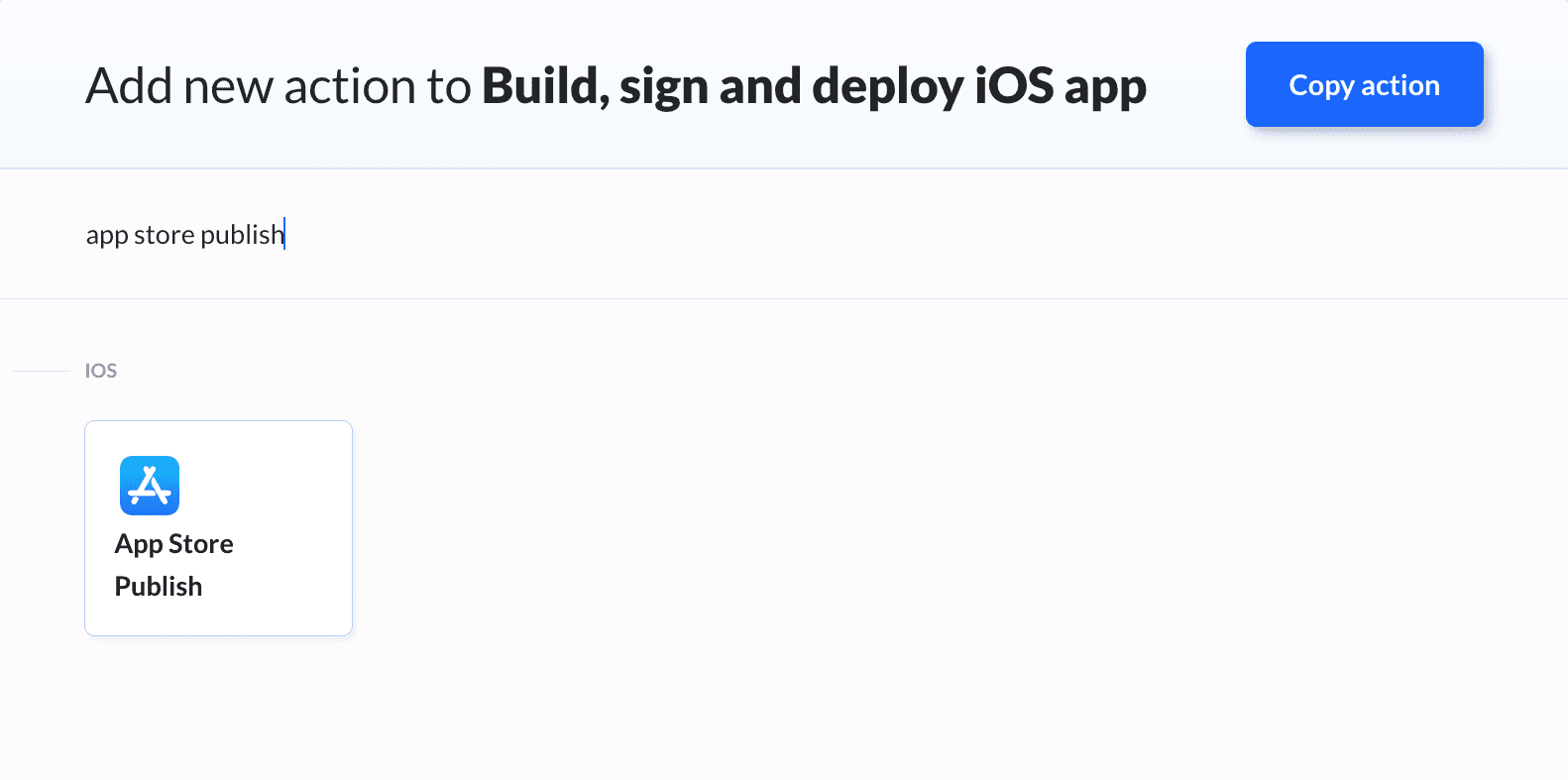

Once signed, the package can be deployed to App Store Connect. Click the + on the pipeline view and look up the App Store Publish action:

App Store Publish on action list

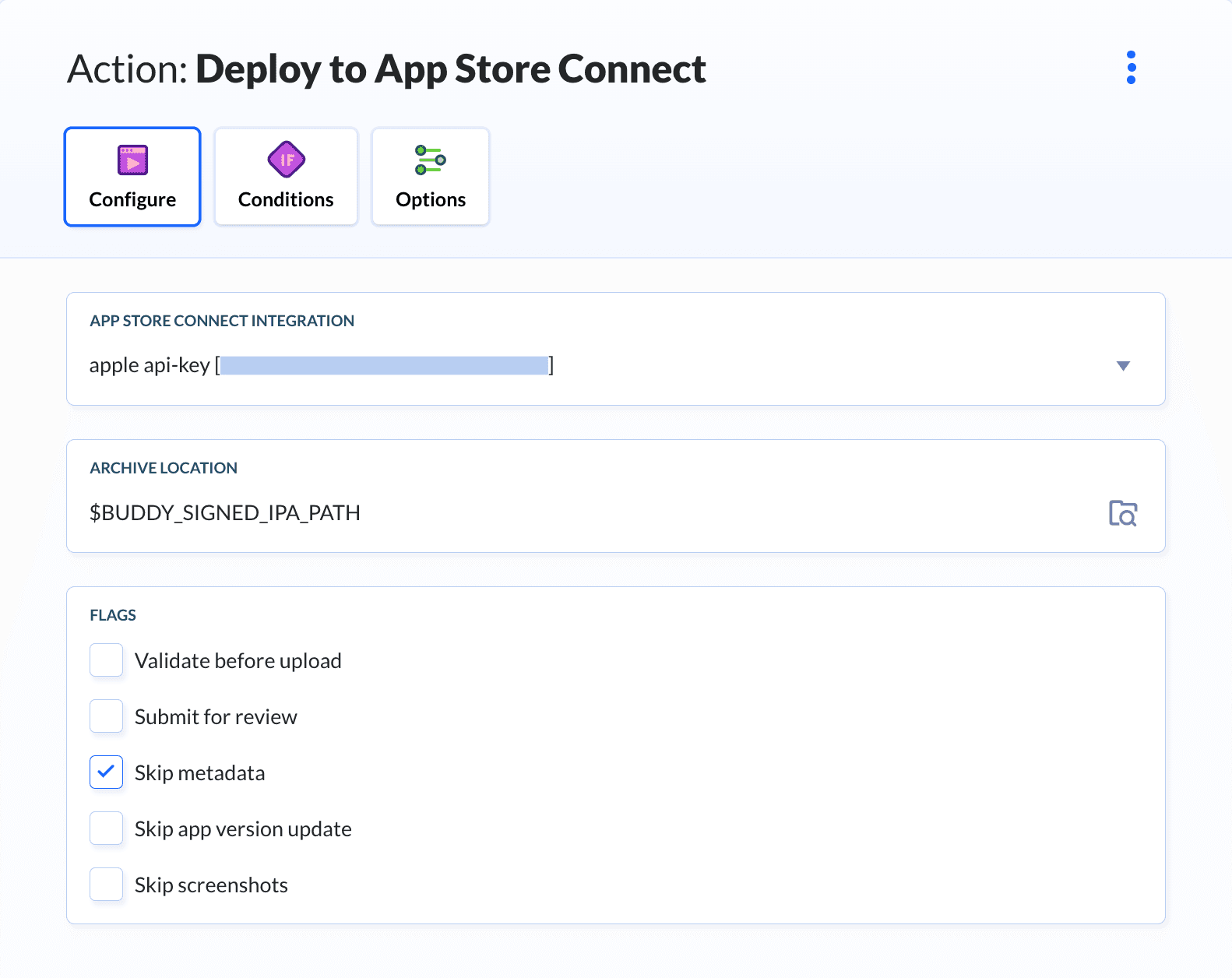

The action automatically detects the signed archive in the pipeline's filesystem. There you can also check the desired deployment flags:

App Store Publish action configuration

Running the pipeline

With everything configured, make a push to the branch with your project: if you set the pipeline to run on Git events, Buddy will automatically fetch the repository code and trigger the pipeline.

You can check the results in the Runs tab. Here you'll find detailed logs for each action. For example:

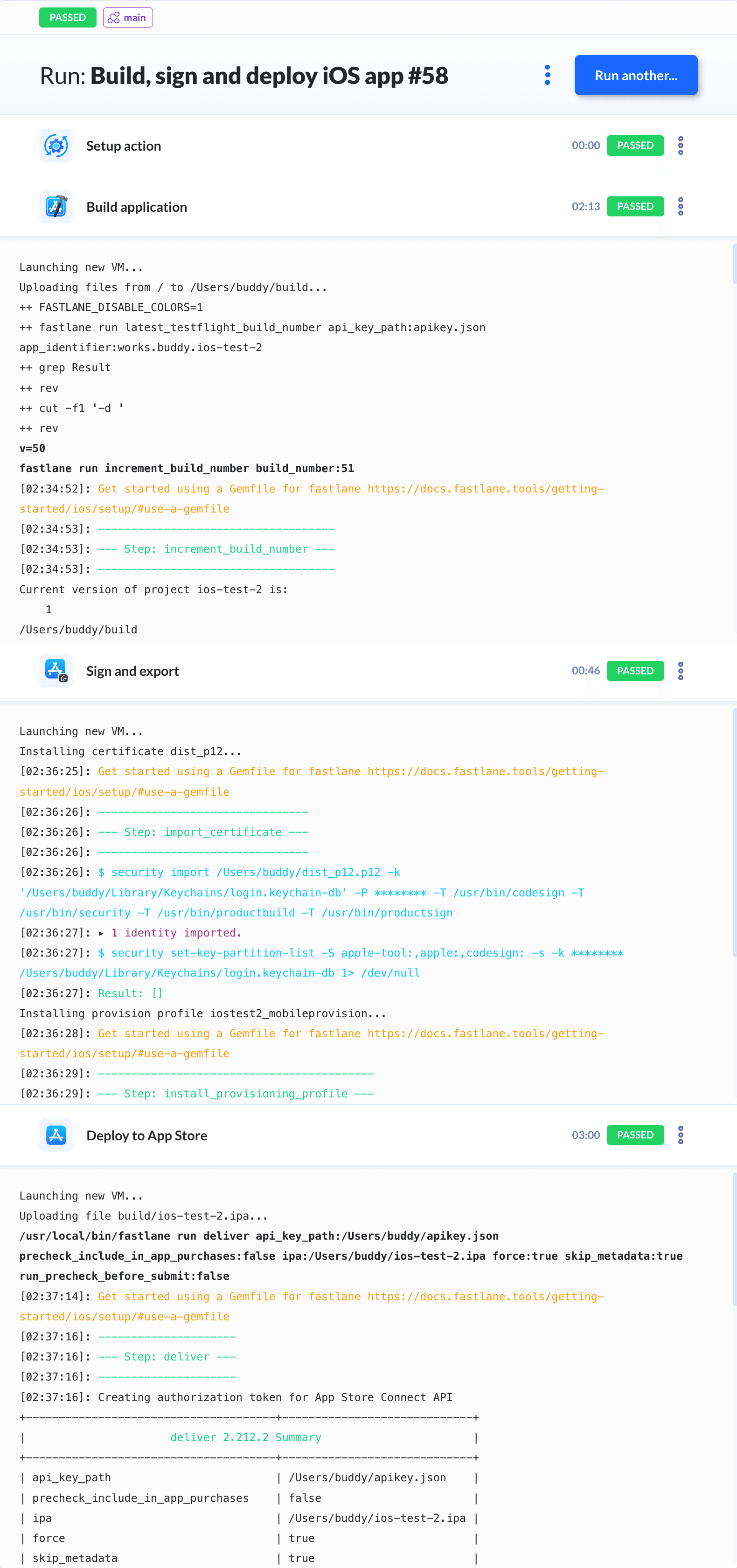

Example pipeline run details with expanded logs

Optional: Deploy using commands

Alternatively, you can deploy the package with commands directly from the build action. Here is an example for Fastlane deployment:

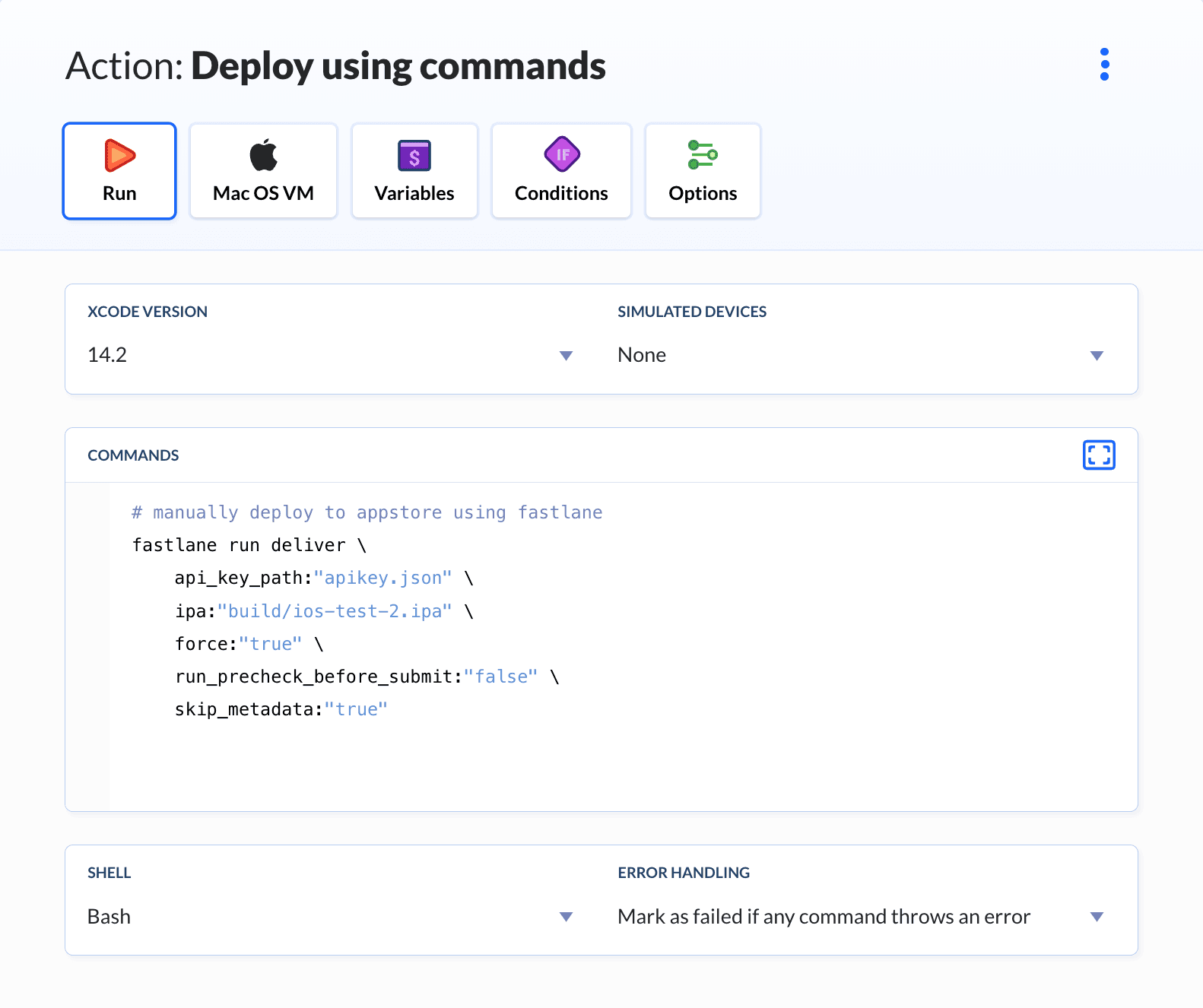

Manual deployment commands in Xcode build action

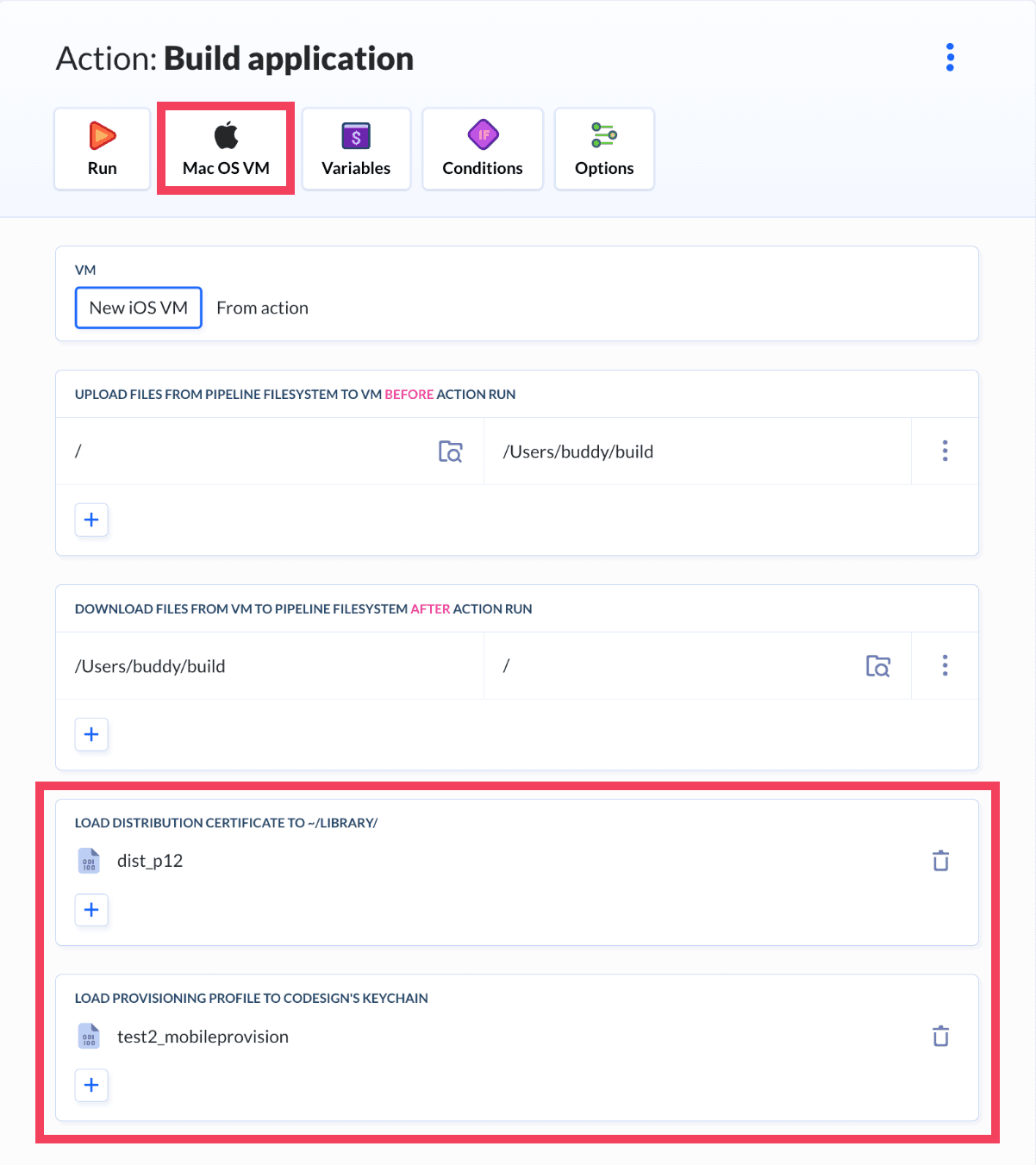

In this case, you need to upload the certificate and profile in the action's Mac OS VM tab:

VM settings of iOS build action
