LDAP

Integrating with LDAP allows you to synchronize users between Buddy and your server.

Prerequisites

You need this infomation to set up the LDAP integration:

  • LDAP server host and port
  • Does the LDAP server support SSL connection?
  • DN and password of the person with privilleges to look up users on LDAP
  • LDAP subtree with user entries
  • Names of email and display name attributes

Testing connection with LDAP server

You can test the connection with your LDAP server using the ldapsearch command:

bash
ldapsearch -W -h localhost -D "cn=admin,dc=example,dc=org" -b "ou=users,dc=example,dc=org" -W "(objectClass=inetOrgPerson)" cn mail$

This command:

  • signs in to the account with DN: cn=admin,dc=example,dc=org
  • performs query: ou=users,dc=example,dc=org
  • filters entries with (objectClass=inetOrgPerson)
  • displays cn and mail attributes

This is what the system returns when you run the command:

# extended LDIF # # LDAPv3 # base <ou=users,dc=example,dc=org> with scope subtree # filter: (objectClass=inetOrgPerson) # requesting: cn mail # # Example User, users, example.org dn: cn=Example User,ou=users,dc=example,dc=org mail: example.user@buddy.works cn: Example User # search result search: 2 result: 0 Success # numResponses: 2 # numEntries: 1

Check the mail and cn fields. You need these details to sync LDAP accounts with Buddy.

Adding LDAP to Buddy

To configure LDAP integration:

  1. Sign in to Buddy self-hosted as admin.
  2. Go to the Self-Hosted Admin panel and switch to the LDAP tab.
  3. Enter integration details.
  4. Click Save changes and restart Buddy to apply the changes.

Testing the configuration

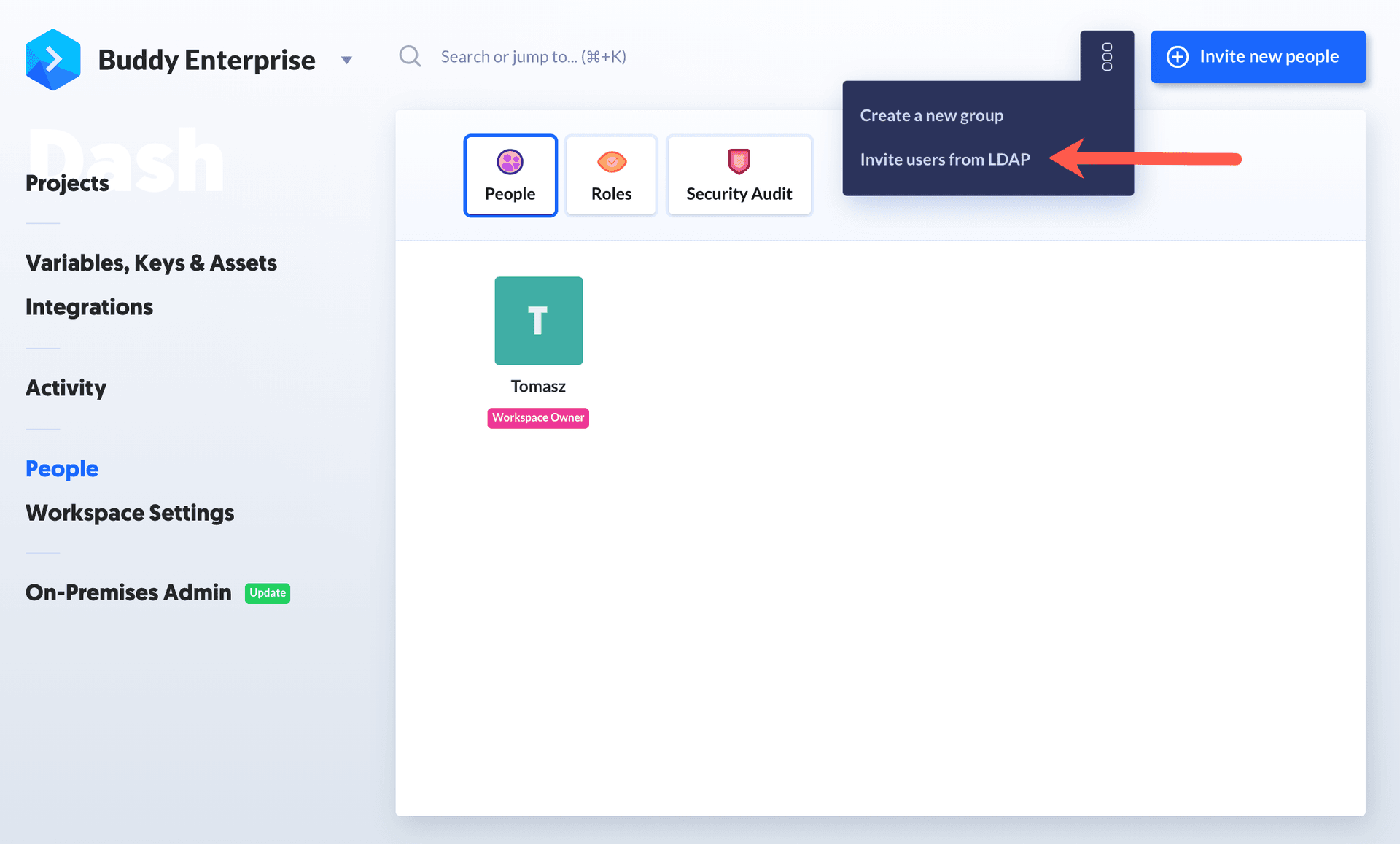

After you restart the instance, go to the People panel and click the Hamburger button. Click Invite users from LDAP.

Image loading...Inviting users from LDAPInviting users from LDAP

Warning
If the page takes too long to load or you get this message: Image loading... It means that Buddy can't connect to the LDAP server. Go back to the LDAP integration panel and check if the information you provided is correct. Additionally, check if the LDAP server is online.
